AQ300LP Steam Boiler Water Dosing and Management

              Keeps Boilers scale and corrosion free

              Lower operating costs

              Ensures correct chemical levels at all times

              Reduced man hours in system operation and tests

              Easily reconfigured for new chemical suppliers

              Download PDF of Specifications

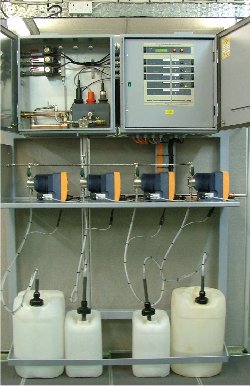

Specially designed for Low Pressure boiler systems (up to 32 Bar), the AQ300LP accurately monitors the boiler and feed water conditions for up to 3 Boilers.
It injects exactly the required amount of chemicals and provides automated surface blowdown.
It keeps the entire plant within the desired chemical limits, 24 hours a day, regardless of load.
The units can be programmed for different water treatment chemicals.
The system includes pH, conductivity and temperature probes, data commu-nication unit with software,
feed flow meters, auto blowdown valves, test kit
and dosing pumps c/w suction assemblies with low level alarm. They can be expanded with an dissolved oxygen probe for total control.
The software provides for continuous display of all important readings and pre-formatted ?Management Reports? provide a summary of average readings for any period requested.
The unit can be linked to other AQUANET systems and all readings are displayed on one monitor. The system is pre-configured for each installation and a choice of coolers, pumps, flow meters and blowdown valves are available depending on vessel requirements.
Installation can be carried out by ships staff, shipyard or sub-contractor. AQUANET can also install with their own personnel

Additional standard features
Flushing water system with flow monitoring.
Dosing pump manual speed control
Dosing pump vent system, returns chemical to drum (No spillage)
Fuse failure alarms
Auto probe calibration on the unit.
